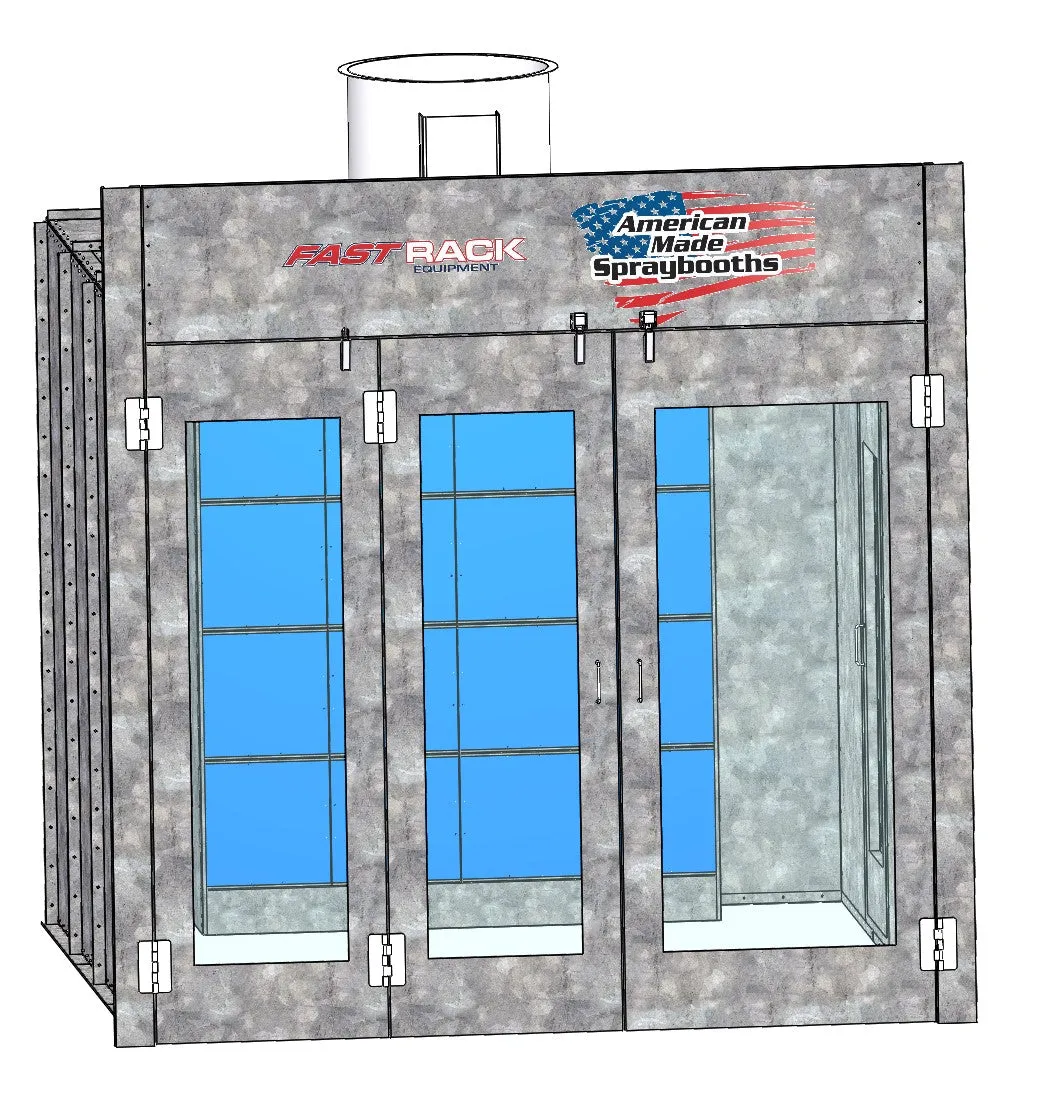

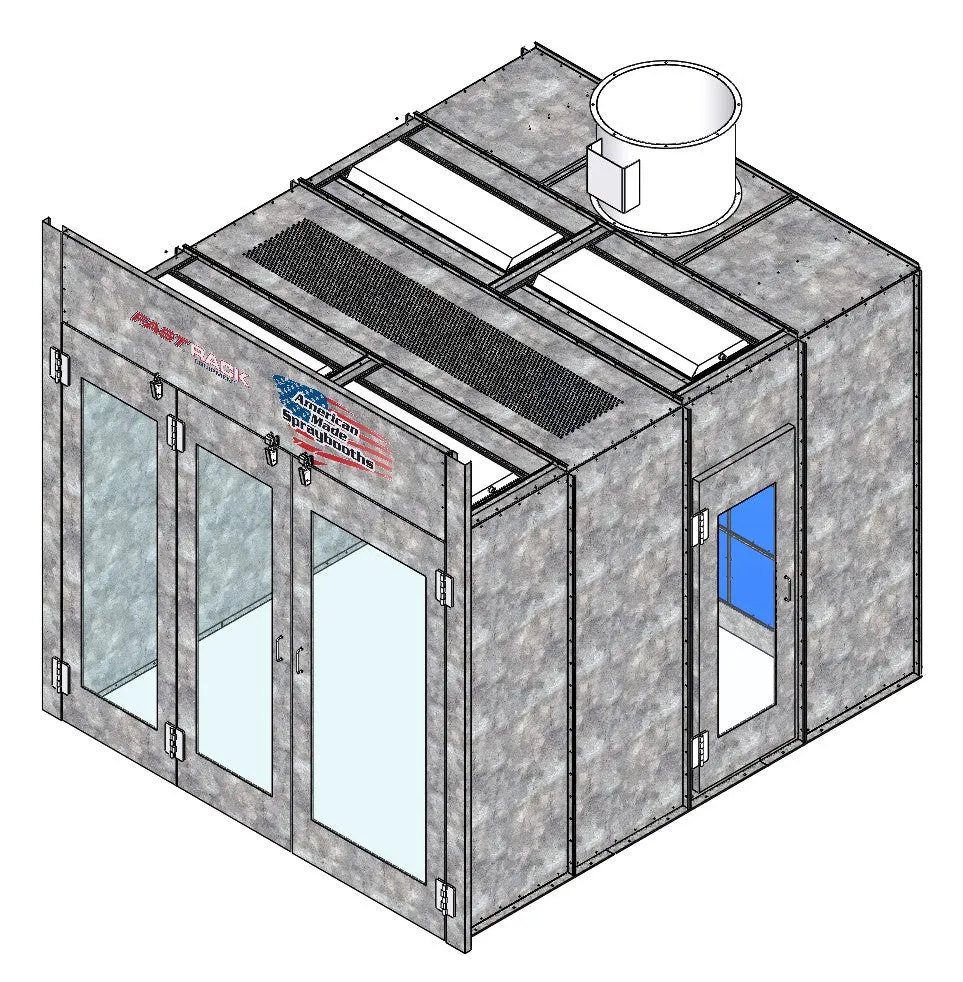

Fast Rack Equipment Professional Finishing Semi-Down Draft Enclosed Spray Booths are ideal for creating a superior finish and the perfect environment for the finisher. Semi-Down Draft Spray Booths are mainly used in woodworking, light and heavy industrial, automotive, manufacturing, machining, and more.

Our spray booths are all made from 18-gauge galvanized steel and comply with NFPA-33 standards for spray application using flammable or combustible materials. Our electrical components are UL Certified to meet nationally recognized safety and sustainability standards.

The Fast Rack Equipment team is here to assist you in choosing one of our standard spray booths or creating the perfect custom spray booth with the help of our engineers.

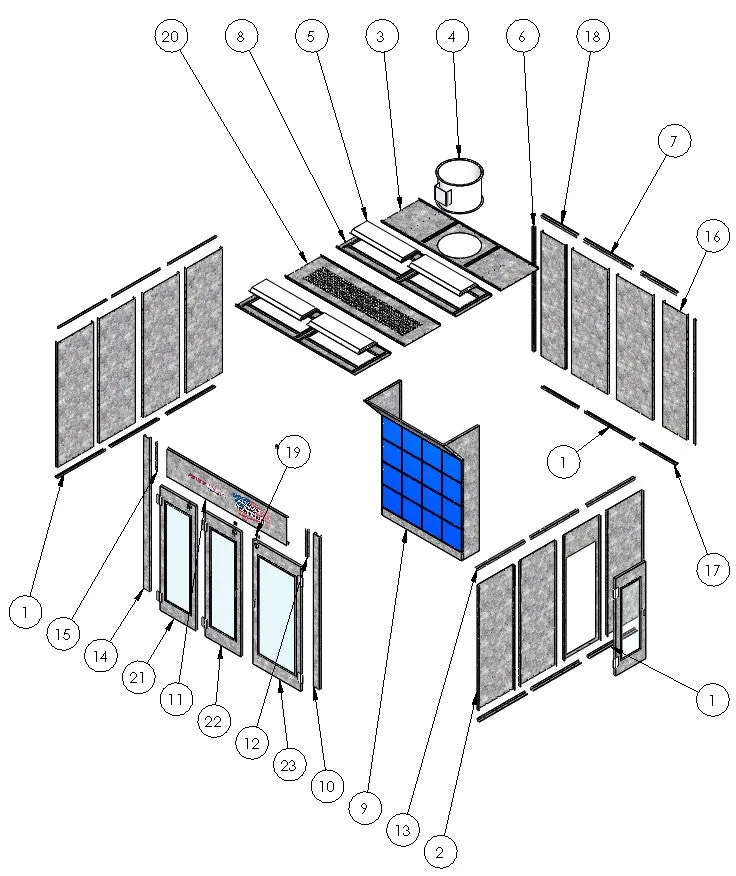

Booth Specifications:
(1) front Bi-Fold Doors and (1) front Single Door
(1) access side Man Door
(4) 4 Tube LED T8 light fixtures
(1) 30” Diameter Tubeaxial belt drive exhaust fan (14,040 cfm w/3hp)
(1) 3hp 3ph motor 208-230/460v. 60 hz
(1) Mark II 25 Dwyer manometer kit defines air flow pressure
(16) Exhaust filters with (16) exhaust filter grids
(1) Intake filter pads
(1) Hardware set for assembly, nuts & bolts, screws

OPTION:  (1) 3hp motor, single-phase, 1,740 RPM, 115/230V AC, 184T

Outside Dimensions:
11’ Wide (the front support makes the booth wide in the front only)
12’4” Long (the body of the spray booth)
11‘ High (2’ for the header)

Inside Dimensions:
10’ Wide x 12’ Long x 9’ High

Working Dimensions:
10’ Wide x 10’ Long (2‘ for the Plenum) x 9’ High

Note:  Refer to the working dimensions when deciding the length of your spray booth. You will lose 2' length inside of the booth for the Plenum.  Plenum approximately 2' wide.
