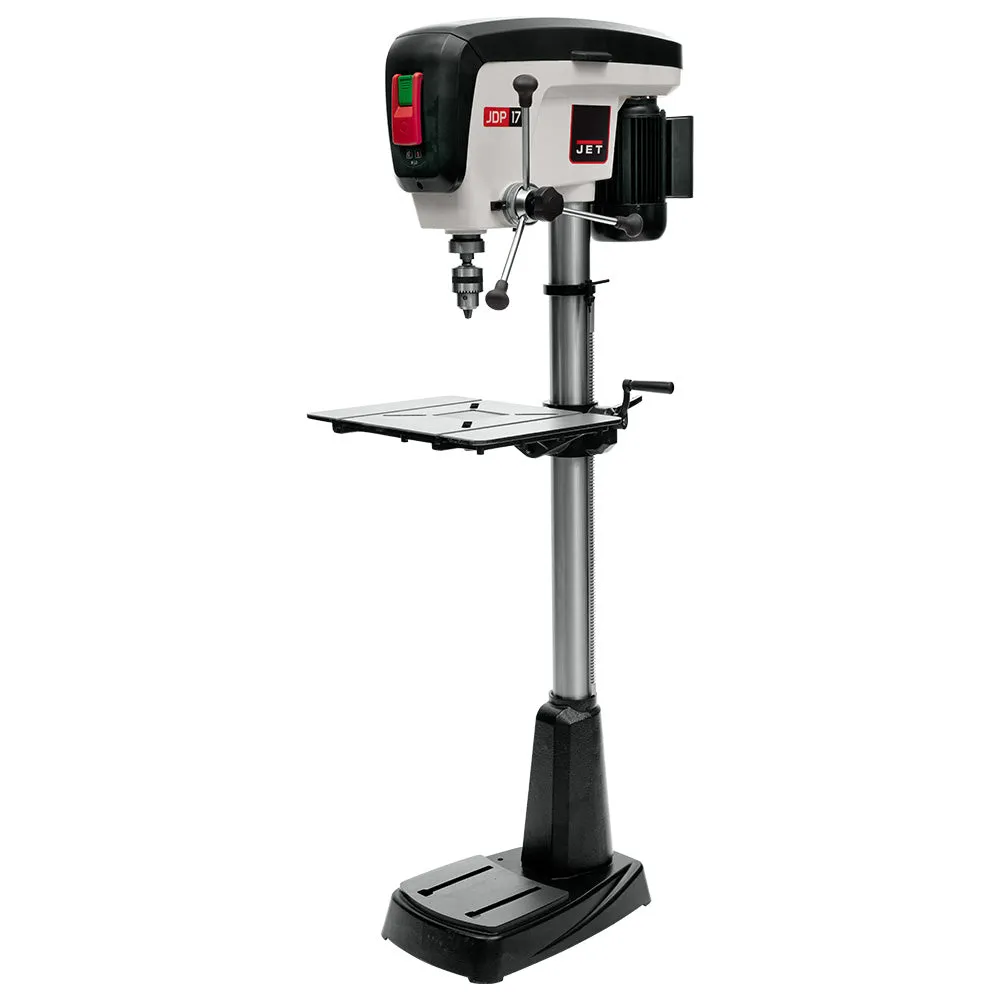

From a full 5" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. The JET 17" Floor Drill Press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping.
JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
[TABS]
Features

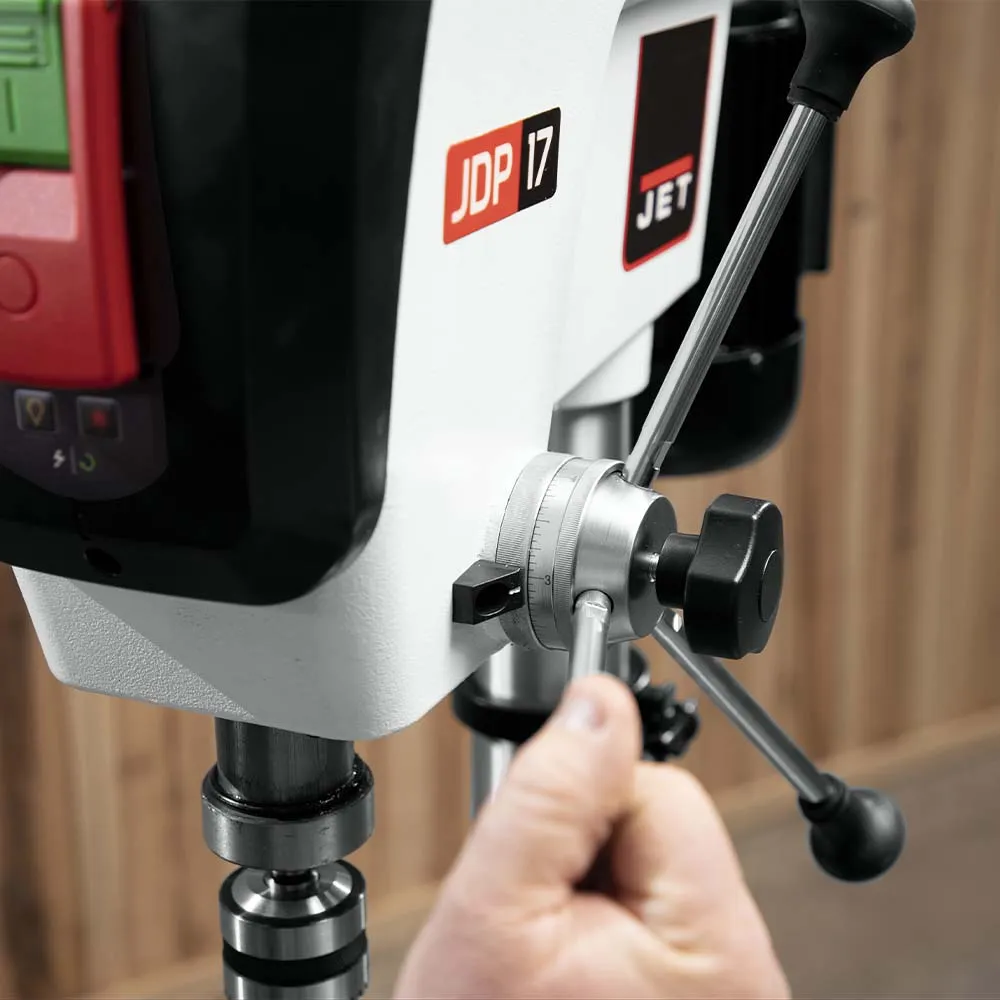

- Integrated depth stop makes repetitive drilling quick and easy
- Large cast iron base provides stability
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button

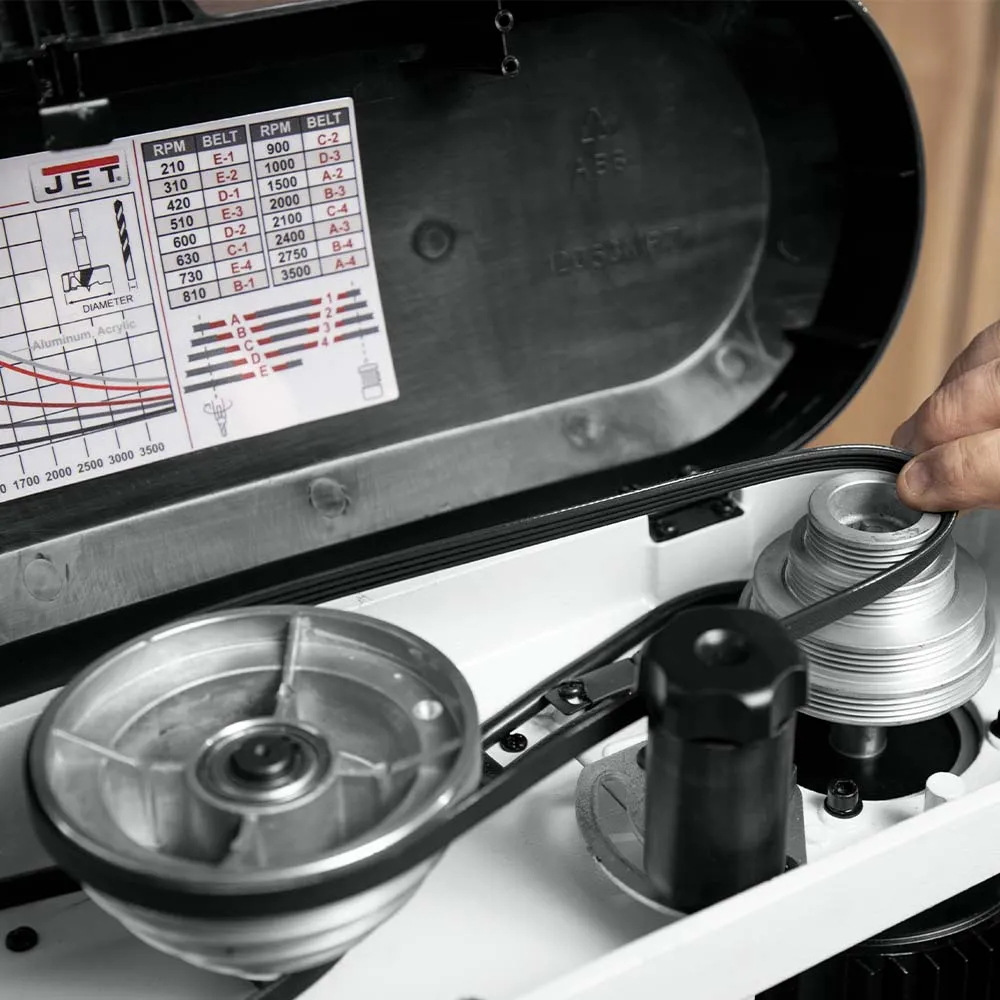

- Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system

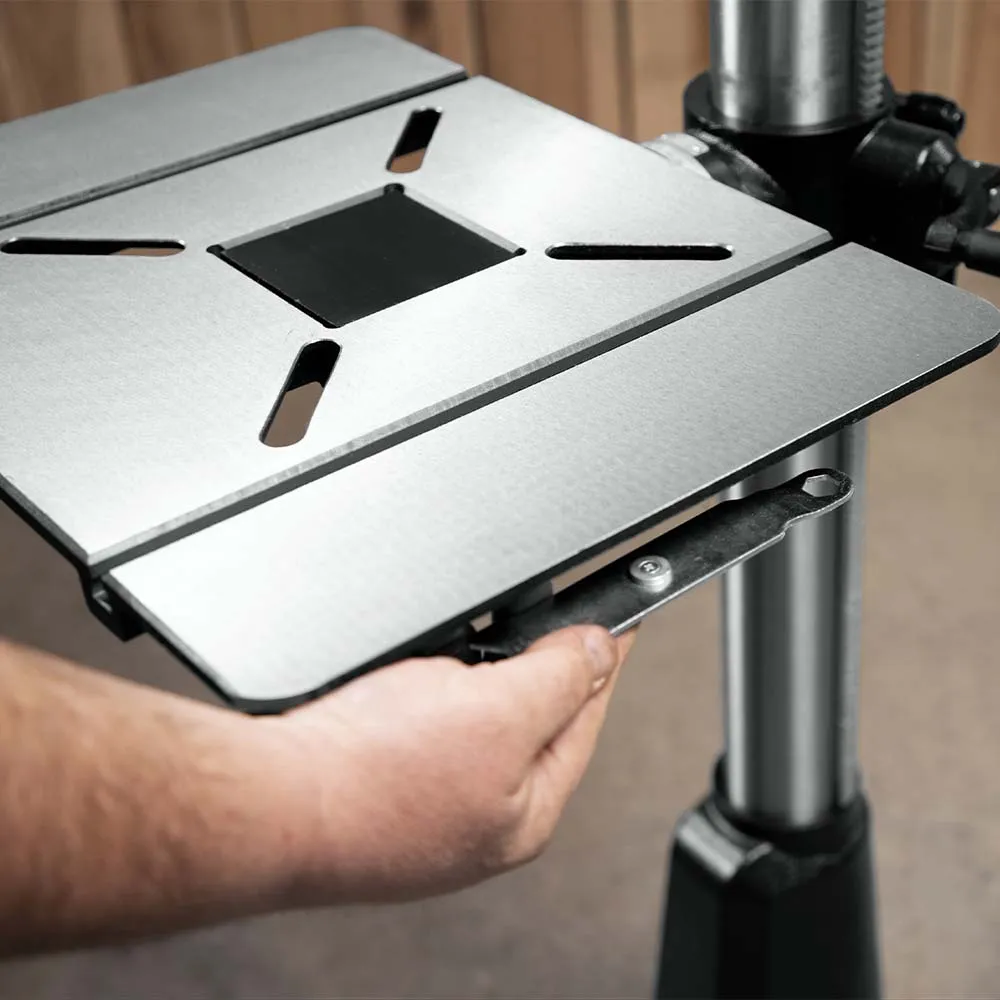

- Replaceable MDF table insert

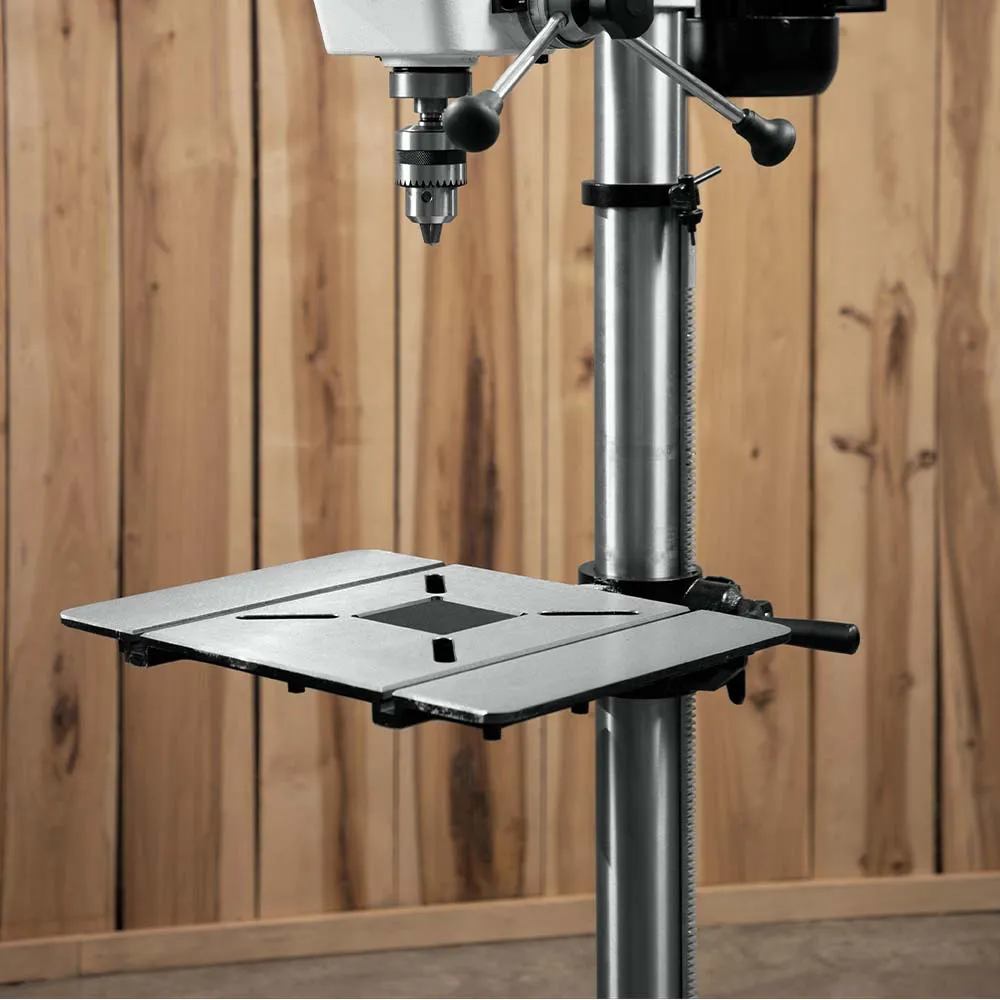

- Table edge lip designed to make clamping easy
Specs
Assembled Machine Dimensions (L x W x H): 28-1/2" x 19" x 65"
Chuck Distance to Base: 42-7/8"
Chuck Distance to Table: 25-7/8"
Chuck Size: 5/8"
Column Diameter: 3-5/32"
Motor Power: 3/4hp
Number of Spindle Speeds: 16
Recommended Circuit Size (Amps.): 15
Spindle Distance to Base: 46-1/2"
Spindle Distance to Table (Max.): 30"
Spindle Travel: 5"
Style (Type): Floor standing Model
Swing: 16-7/8"
Table Size (LxW): 14" x 19"
Weight: 187 lbs.
